WEND Lab R33 Skyline DIN Triple CANBUS Gauge - R33-3DIN

Part Number: R33-3DIN

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 1

1

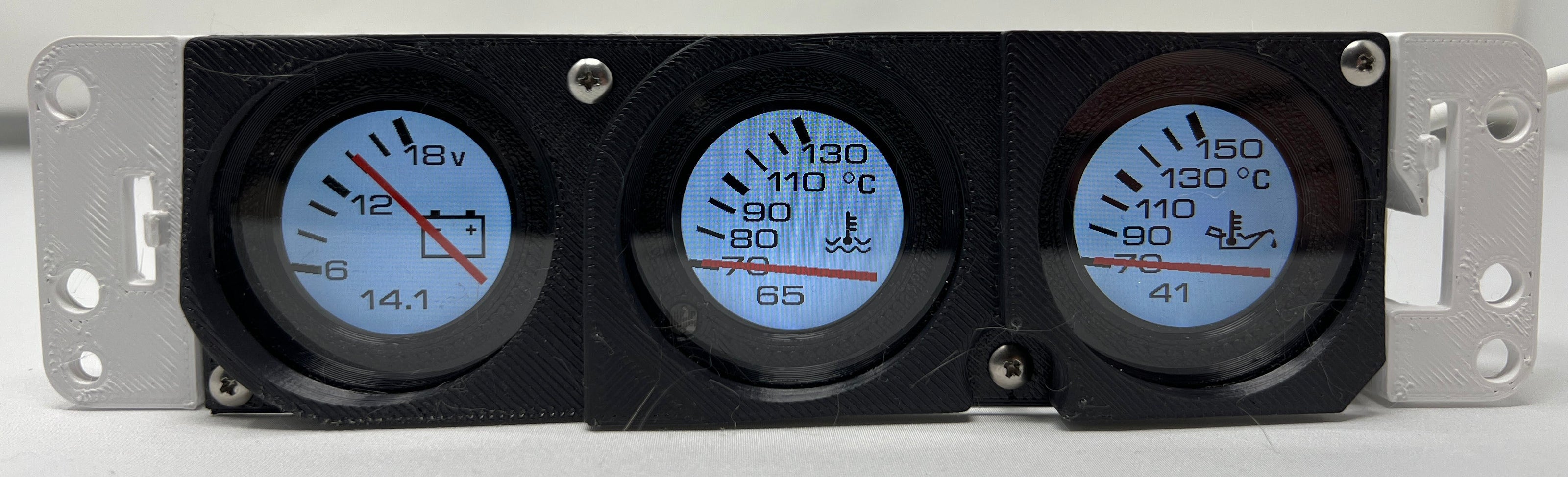

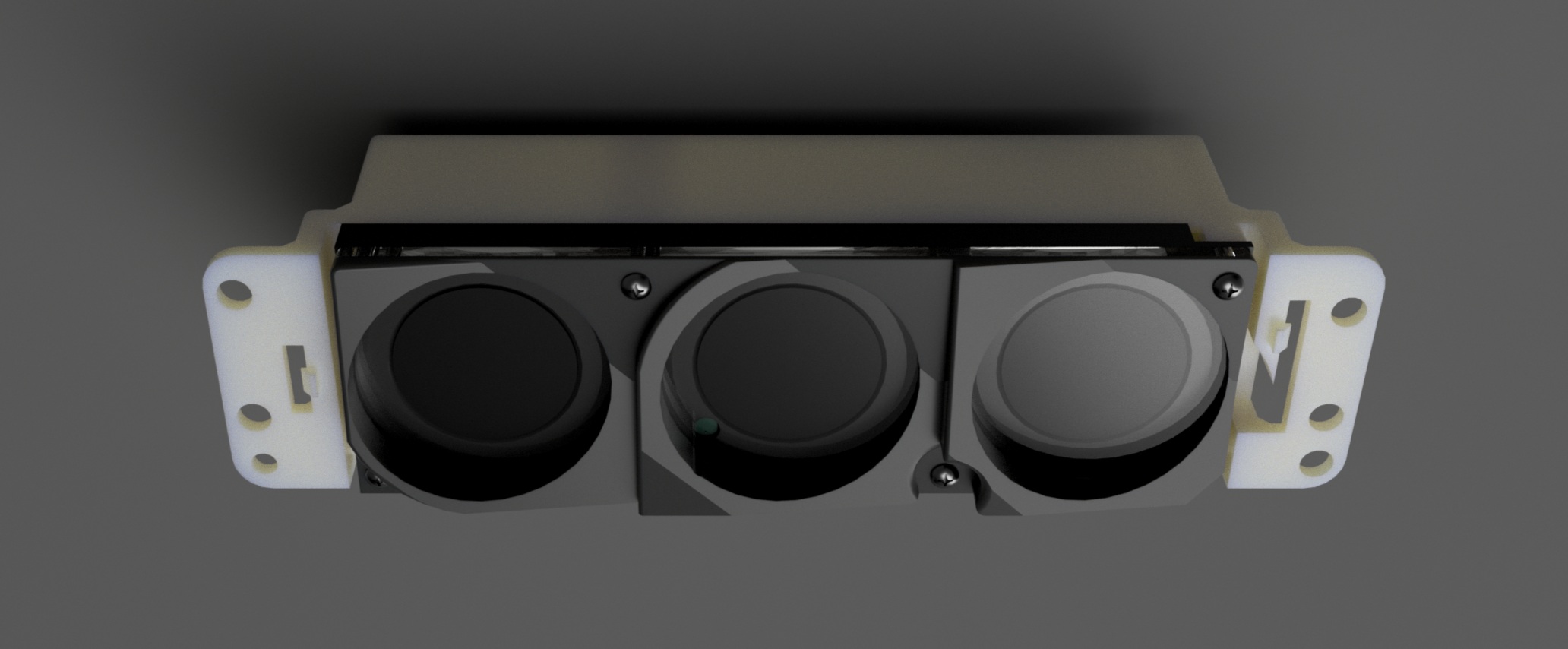

WEND Lab R33 Skyline DIN Triple CANBUS Gauge, part number R33-3DIN. Replaces the factory DIN triple meter in the Nissan Skyline R33.

  • 3 fully configurable gauges that use the CANBUS data stream from an aftermarket ECU
  • Made in the USA, case 3D-printed in temperature-resistant ASA plastic, purpose-designed electronics
  • Customizable appearances and configurable warning levels
  • Configured over Bluetooth with the iOS or Android app
  • Auto-dimming displays with night mode

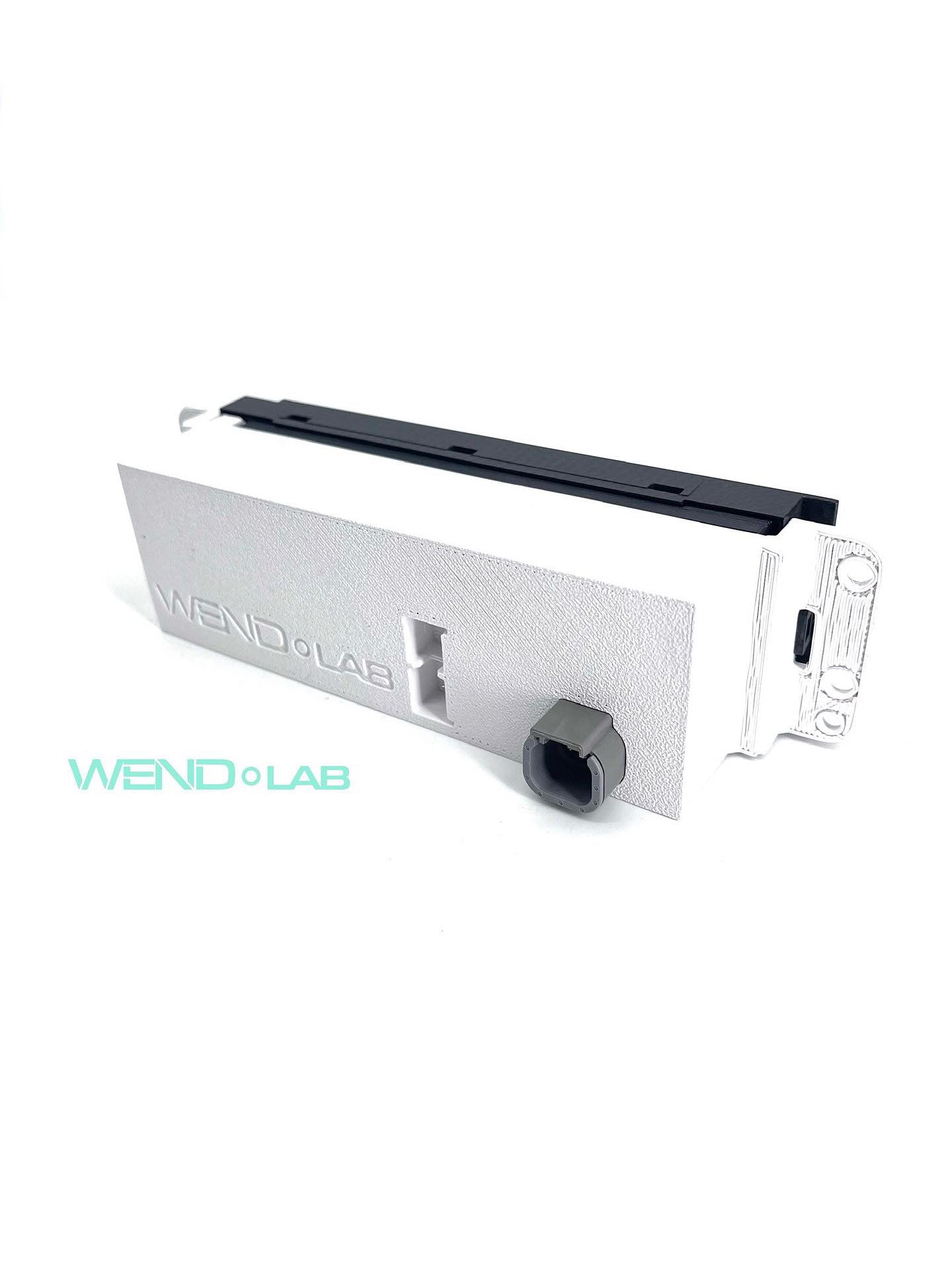

  • Single DTM 4 pin connector wiring. A DTM 4 pin plug is required for installation and is sold separately: Deutsch Style DTM 4 Pin Plug Connector Kit, DTM06-4S
  • Direct replacement of the factory unit, uses the factory bezel
  • Supported ECUs: Haltech (CAN protocol v2), Link (G-Series), Emtron (KV Series), AEM Infinity, MoTeC M1 Series (GPR/GPA/Powertune Australia FW), ECUMaster Black Series, MaxxECU, Syvecs (S-Series), MegaSquirt
  • Supported gauges: battery voltage, water, oil, fuel and intake air temperature, exhaust gas temperature, water, oil, fuel and boost pressure, air fuel ratio, ethanol content, injector duty, throttle position, tire temperature and pressure, fuel tuning, engine health, boost control, gear position, speedometer, and 5 custom digital displays with 1-7 user-configurable parameters (the ECU needs the matching sensors and CAN configuration)

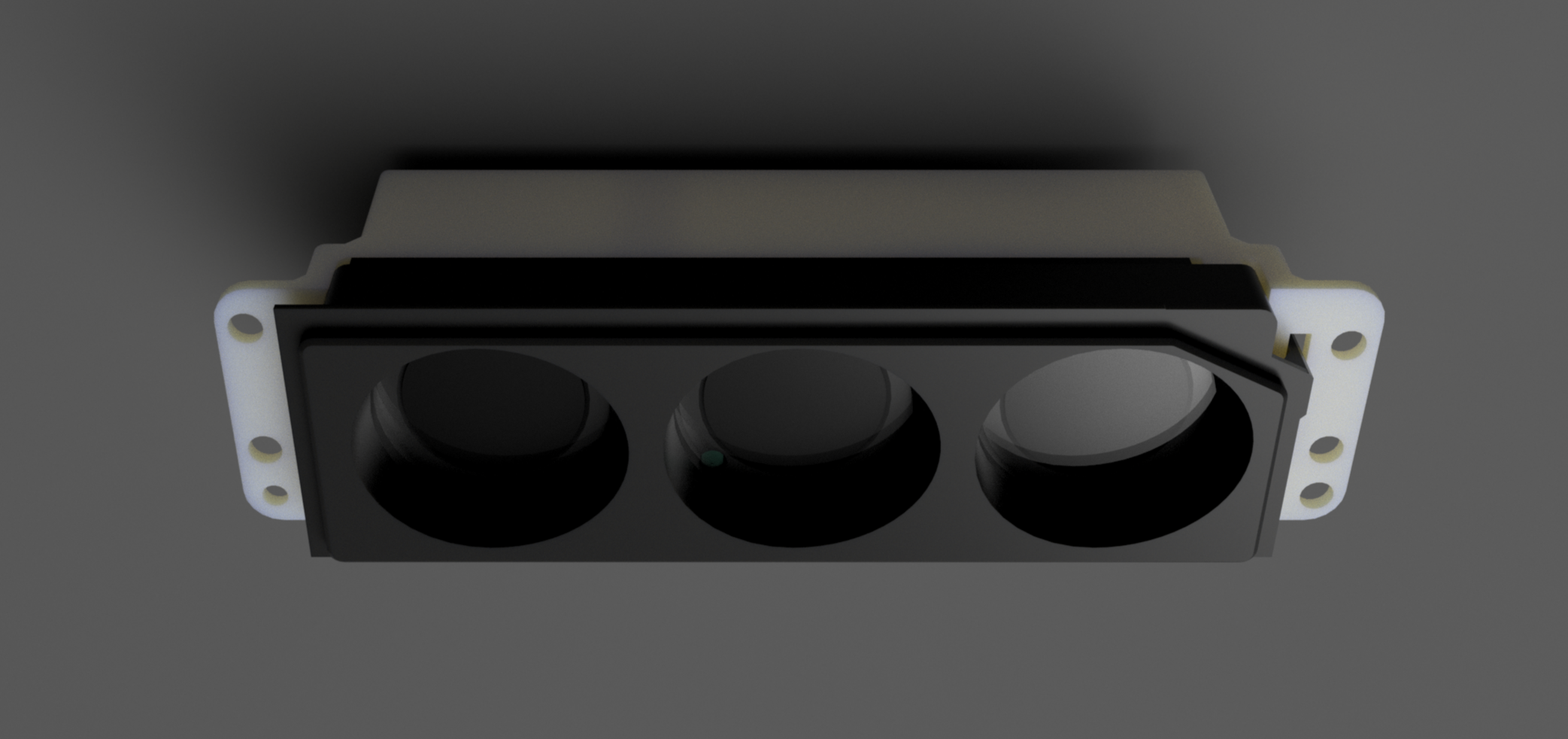

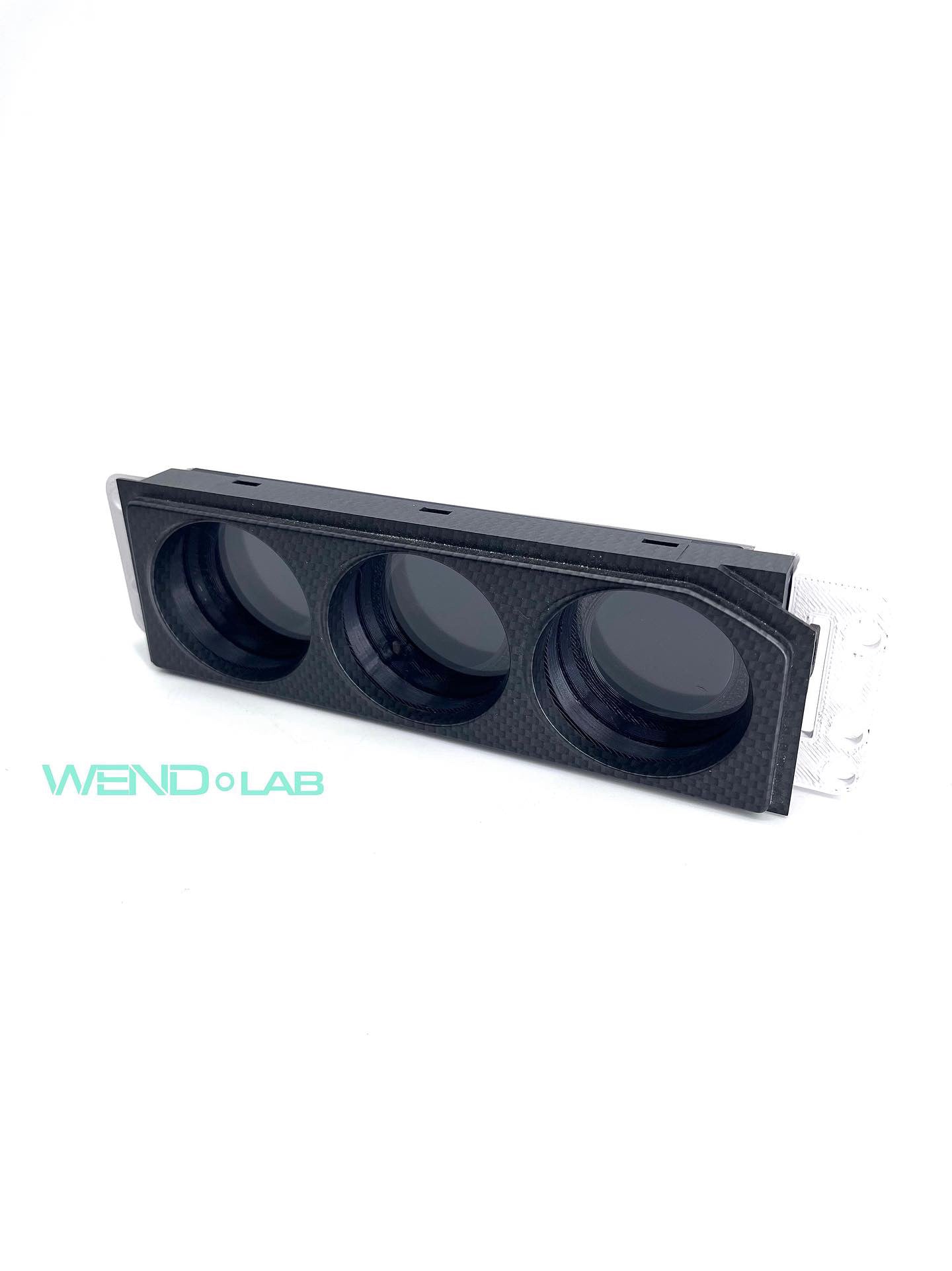

Need a bezel?

  • R33 GT-R: the gauge reuses your factory bezel. To replace it, get the gauge and GT-R bezel kit
  • R33 GTST: there is no factory triple meter, so you need a bezel. Get the GTST gauge and bezel kit. The GT-R bezel mounts the gauge in the top DIN slot and the GTST / Stagea bezel mounts it in the 2nd slot from the top

Fitment

  • Nissan Skyline R33, factory DIN triple meter

Resources

Contact us if you are unsure of fitment or Size HERE
