Link CANLTW - CAN Connection Cable for G4X/G4+ WireIn ECU’s (6 Pin CAN) - 101-0211

Part Number: 101-0211
Authorized Link ECU Dealer Ships from Calgary

Warehouse Icon Inventory Location: Boost Factory Calgary Canada

Stock: 1

1

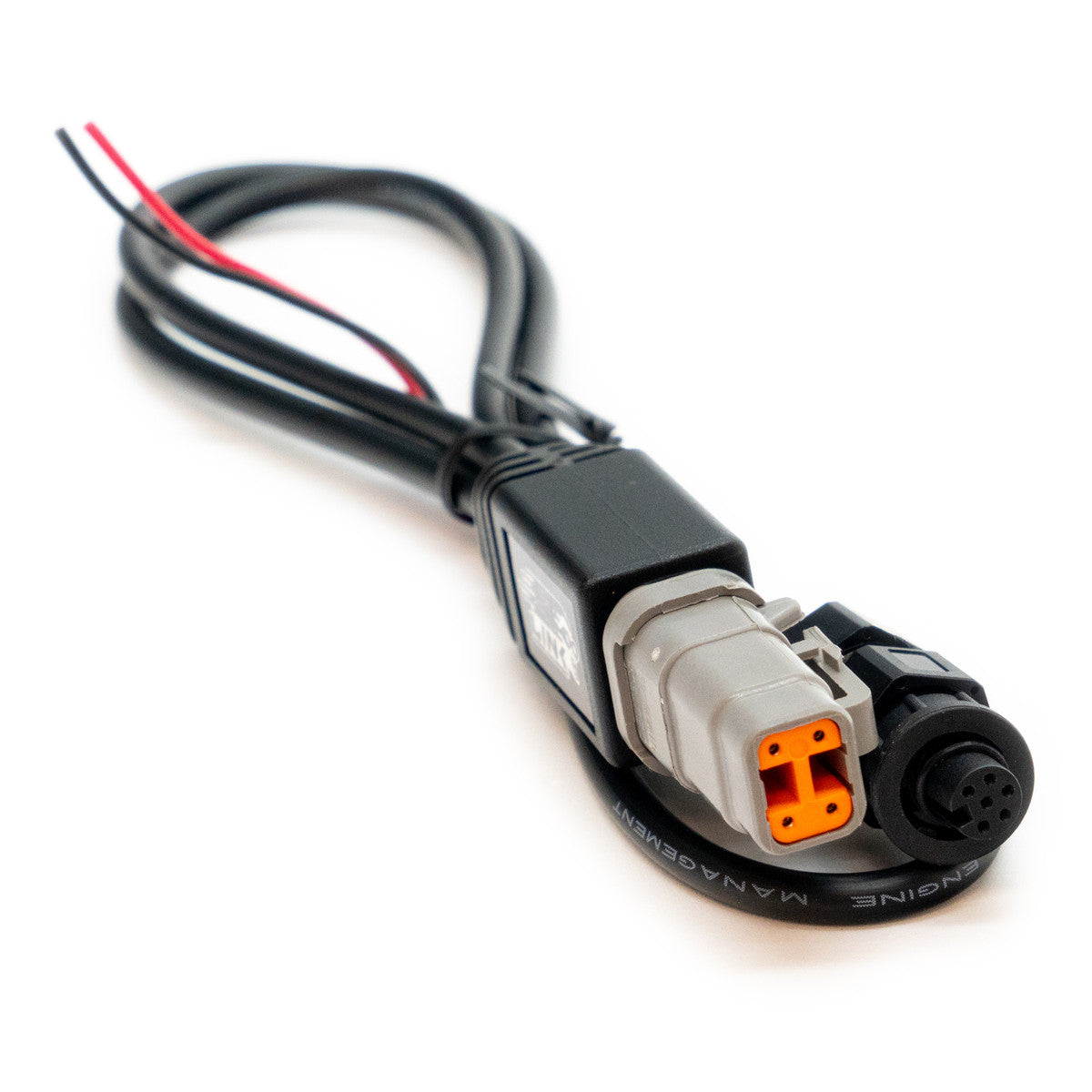

Link CANLTW CAN Connection Cable for Wire-in ECUs (6-pin CAN) - 101-0211

Adds CAN communication to Link Wire-in ECUs that have CAN on the 6-pin round connector on the front of the case. It converts the LTW 6-pin port to Link's standard DTM4 CAN plug, with 12 V and ground supplied by flying leads.

Suits: G5 Voodoo Pro, G4X/G4+ Xtreme, G4X/G4+ Fury, G4+ Force and G4+ Thunder (CAN1 on each).

Includes: CANLTW CAN connection cable.

Specifications

  • Connector: LTW 6-pin to DTM4 male, with 12 V and GND flying leads
  • DTM4 pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
  • Cable length 300 mm, flying lead length 500 mm
  • Maximum input voltage 300 V, maximum continuous current 3 A, 20 AWG / 0.5 mm² wire
  • Dimensions: 570 x 20 x 20 mm (22.44 x 0.79 x 0.79 in)
  • Weight: 50 g (1.76 oz)

Notes

  • Link recommends installation and setup by an official Link dealer.

You may also need

A CANTEE splitter (101-0212) for more than one CAN device, or a CANEXT 2 m extension (101-0214) for extra reach.
