Link G5 CAN Connection Cable - 101-5104

Link G5 CAN Connection Cable - 101-5104

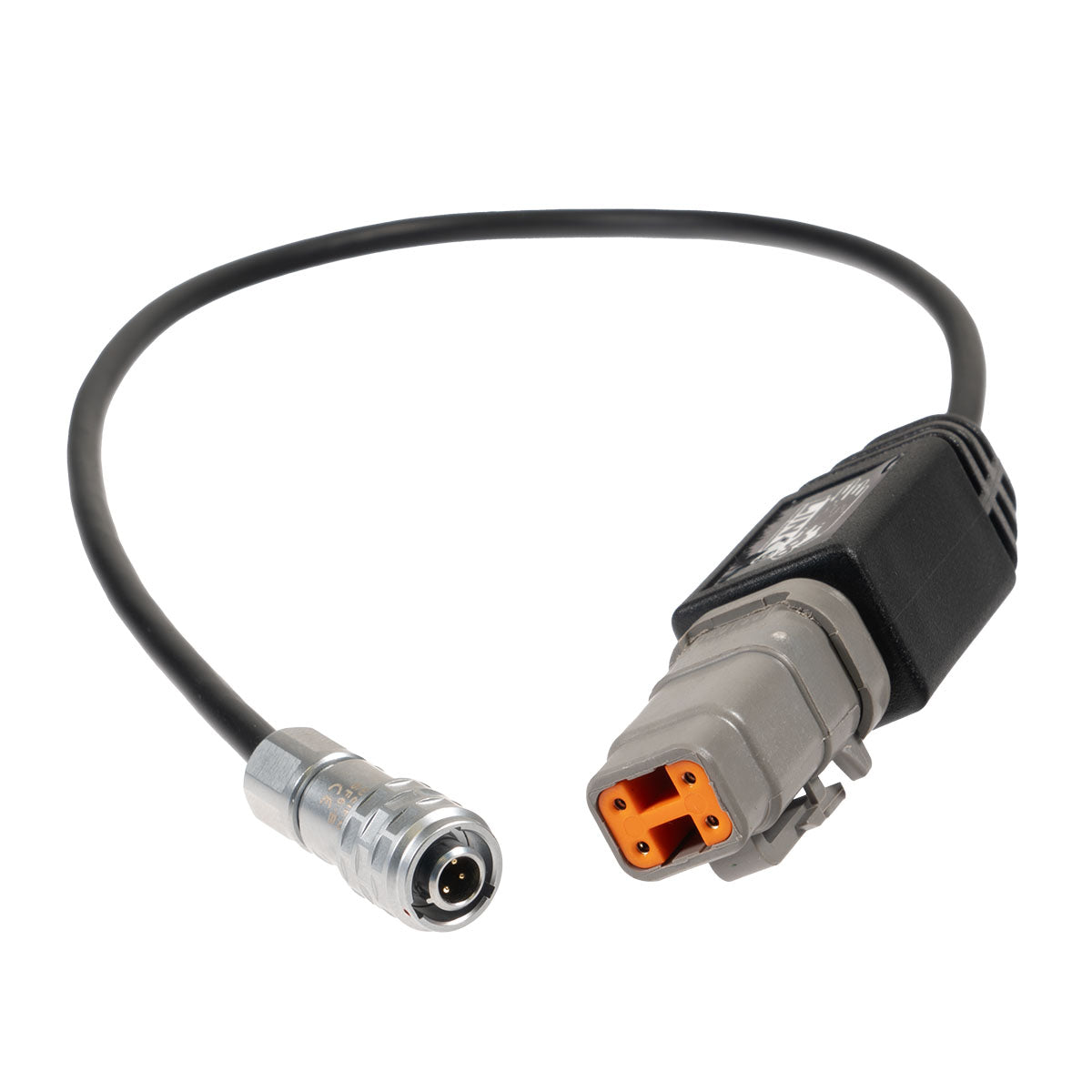

Gives access to CAN 1 on G5 Voodoo ECUs. The 300 mm cable plugs into the ECU's 4-pin WEIPU CAN connector and ends in a DTM4 male plug carrying CAN High, CAN Low, 12 V and ground, so CAN devices are powered straight from the ECU.

Suits: Link G5 Voodoo ECUs.

Includes: G5 CAN connection cable.

Specifications

• Connector: DTM4 male to WEIPU SF610B/P4
• DTM4 pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
• Cable length: 300 mm
• Maximum continuous current draw: 3 A (CAN power supplied by the ECU)

Notes

• Link recommends installation and setup by an official Link dealer.

You may also need

Link CAN devices such as the CAN Lambda (125-1000), CAN Gauge (101-0226) or a CAN keypad, and a CANTEE splitter (101-0212) to run more than one device.
