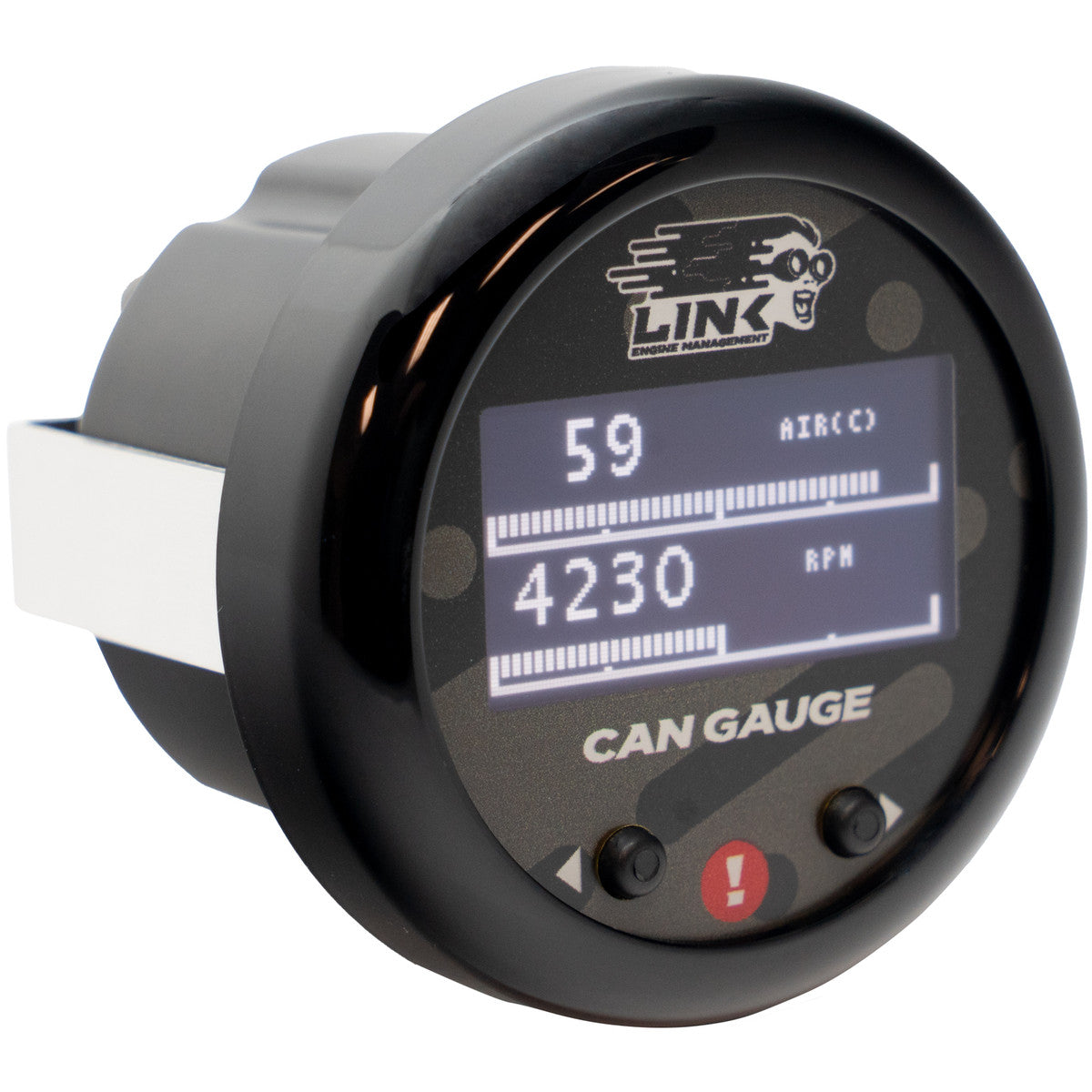

LINK Link CAN Gauge OLED 52mm 101-0226

Details

The Link CAN Gauge is a cost-effective alternative to a larger display, delivering the essential engine data you need in a compact 52mm package. Designed to fit any standard 52mm gauge mounting, it provides real-time ECU data through a high-contrast OLED display with seamless Link ECU integration.

Featuring a high-contrast OLED display with automatic night dimming, the CAN Gauge displays up to four parameters simultaneously across ten fully configurable display pages (40 total). Drivers can prioritise the information most important to them, while customisable warning screens and a bright warning LED provide clear visual alerts for critical engine conditions such as low oil pressure, high coolant temperature or excessive boost pressure.

The compact 52mm form factor allows the gauge to integrate neatly into almost any dashboard, with multiple gauges able to be daisy-chained over CAN for expanded monitoring.

Each CAN Gauge is pre-configured to communicate with all Link G4+, G4X and G5 Wire-in and Plug-in ECUs, making installation straightforward. Simply enable the CAN stream in Link's free PC Link software, then use the free smartphone app to wirelessly configure display layouts, parameters, warning limits and pages in minutes.

The Link CAN Gauge OLED 52mm is the ideal solution for drivers wanting real-time engine data, configurable warning alerts, smartphone setup and seamless Link ECU integration in a compact and affordable package.

Models Supported

The CAN Gauge is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Features

The CAN Gauge OLED 52mm is a compact, high-contrast OLED display with the following features:

ECU Tuning Features:

• Displays real-time data direct from your Link ECU
• High-contrast OLED display, which dims at night
• Up to ten fully configurable display pages with one, two or four parameters per page (40 total)
• Customisable warning screens and LED light for critical engine conditions such as low oil pressure, high coolant temperature or excessive boost pressure
• Wireless configuration via Smart Phone with free included app
• Compact 52mm (2 inch) size in high quality injection-moulded housing
• Supports multiple CAN Gauges connected together in a daisy-chain configuration
• Compatible with Link CAN Connection Cables

Specifications

• Product Dimensions: 18x12.5x6cm
• Product Weight: 0.5gm
• Material: Injection moulded
• Electrical: Operating Voltage Range: 11-15V, Maximum Input Voltage: 17.5V, Maximum Continuous Current Draw: 250mA, Gauges of wire: 22AWG/0.35mm2

What's in the Box

• 52mm OLED CAN Gauge
• DTM4 CAN Gauge Connection Cable
• DTM4 Mating Connector Kit
• Mounting Bracket
• CAN Gauge - User Manual
• Link Stickers
