Link WRX11X Plug-In ECU (Subaru WRX V11) - 238-4000

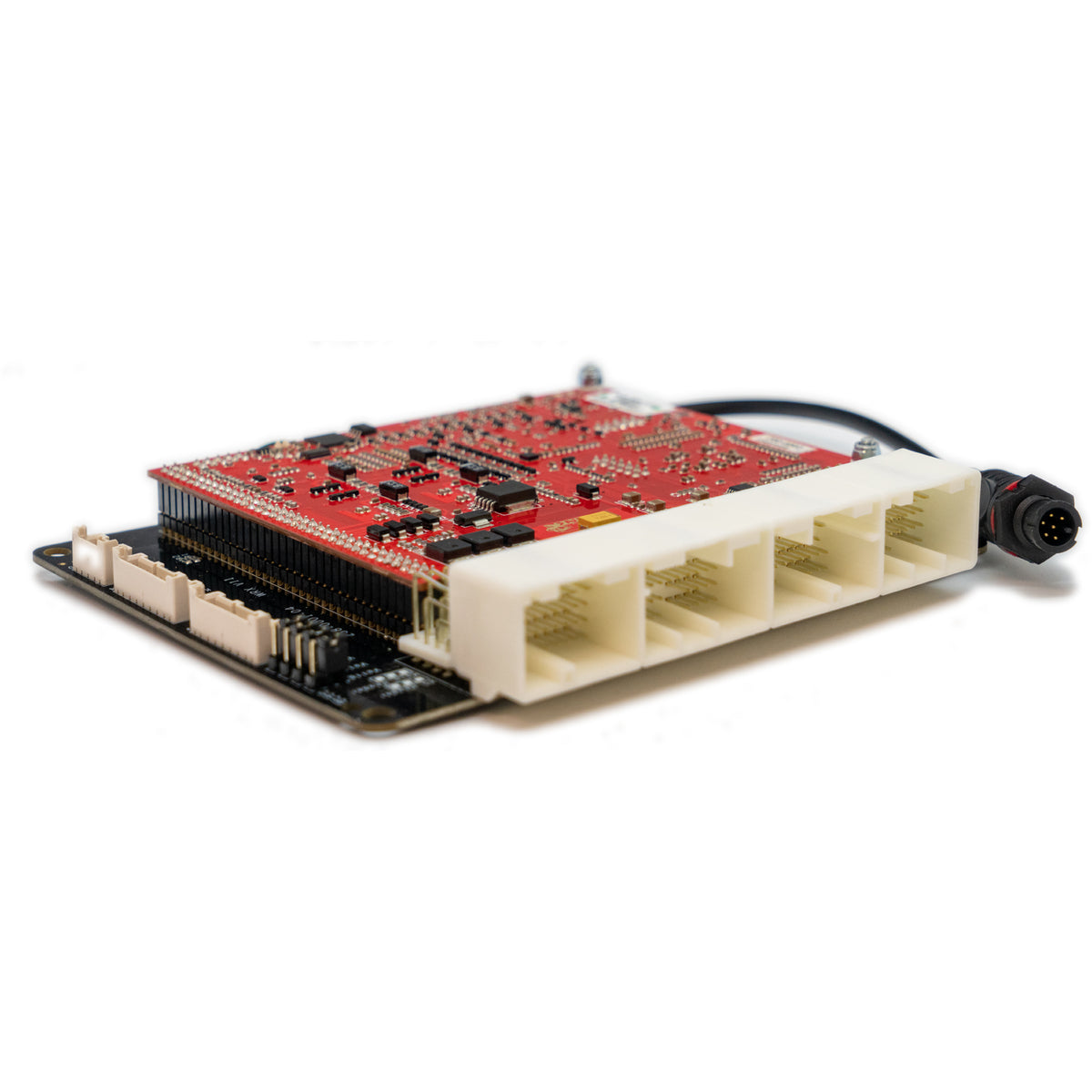

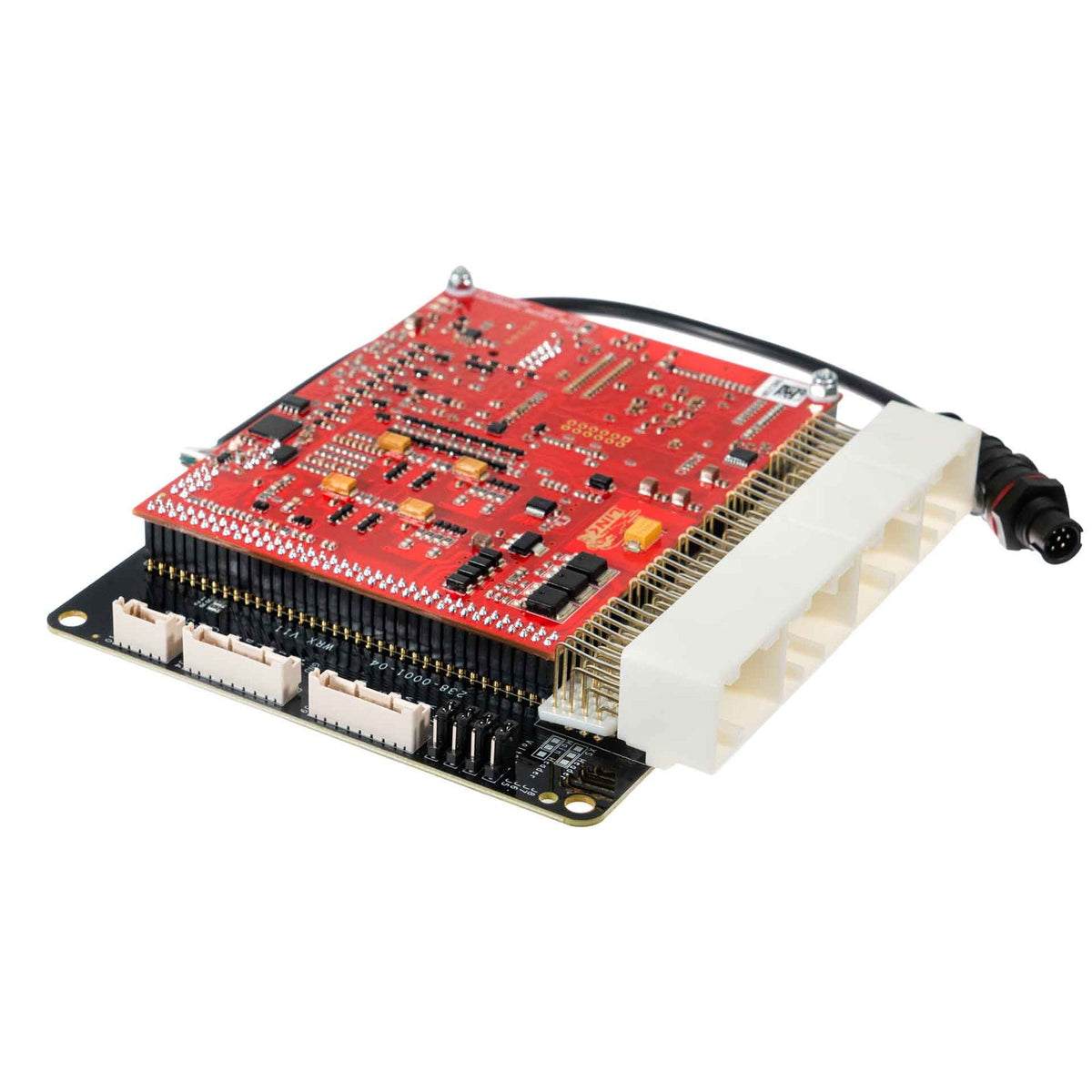

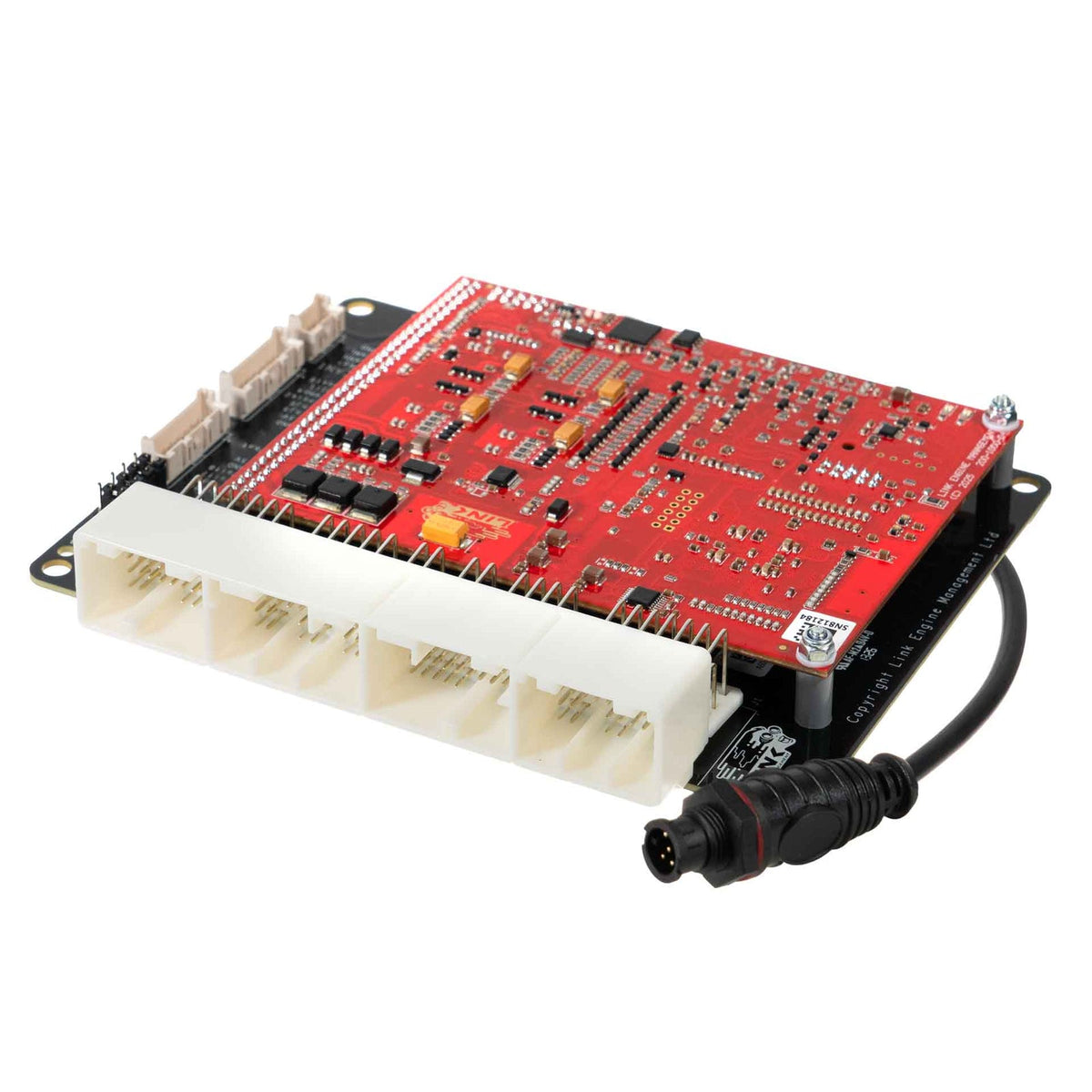

The WRX11X is a G4X plug-in ECU for the Version 11 Subaru WRX and STI. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, runs a startup map, and keeps factory functions including DCCD, hill start assist, SI Drive, cruise control, cam control and ABS. Drive-by-wire (e-throttle) control is built in.

On top of Link's G4X platform it adds motorsport functions such as nitrous, launch control, anti-lag, traction control, race timer/power management and gear and paddle shift control.

Suits: Subaru WRX and WRX STI GR/GV/GH/GE (JDM/AUDM/SADM/EURO) with turbo EJ20 or EJ25, 2007-2014; USDM WRX with the common international Denso ECU pinout, 2008-2010; WRX STI VAB/VAF (JDM/AUDM/SADM/EURO) with turbo EJ20 or EJ25, 2015-2021. Manual transmission only.

Includes: G4X WRX11X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• CAN connector: 4-pin powered port with protected 12 V and ground, self-resetting 3 A continuous fuse
• Built-in e-throttle (drive-by-wire), single
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
• Dimensions: 140 x 160 x 30 mm (5.51 x 6.30 x 1.18 in)
• Weight: 240 g (8.47 oz)
• Inputs/outputs: see the WRX11X installation manual

Notes

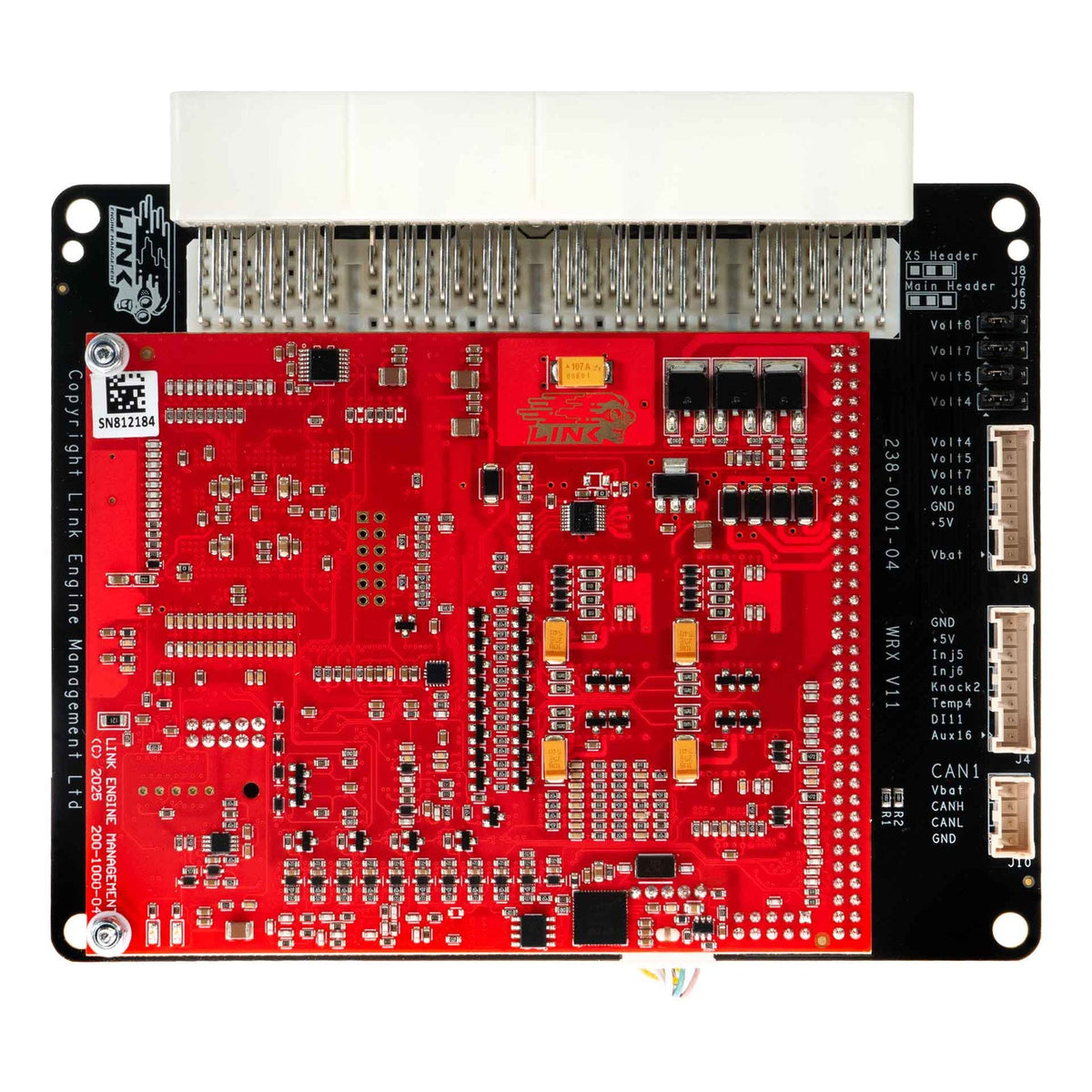

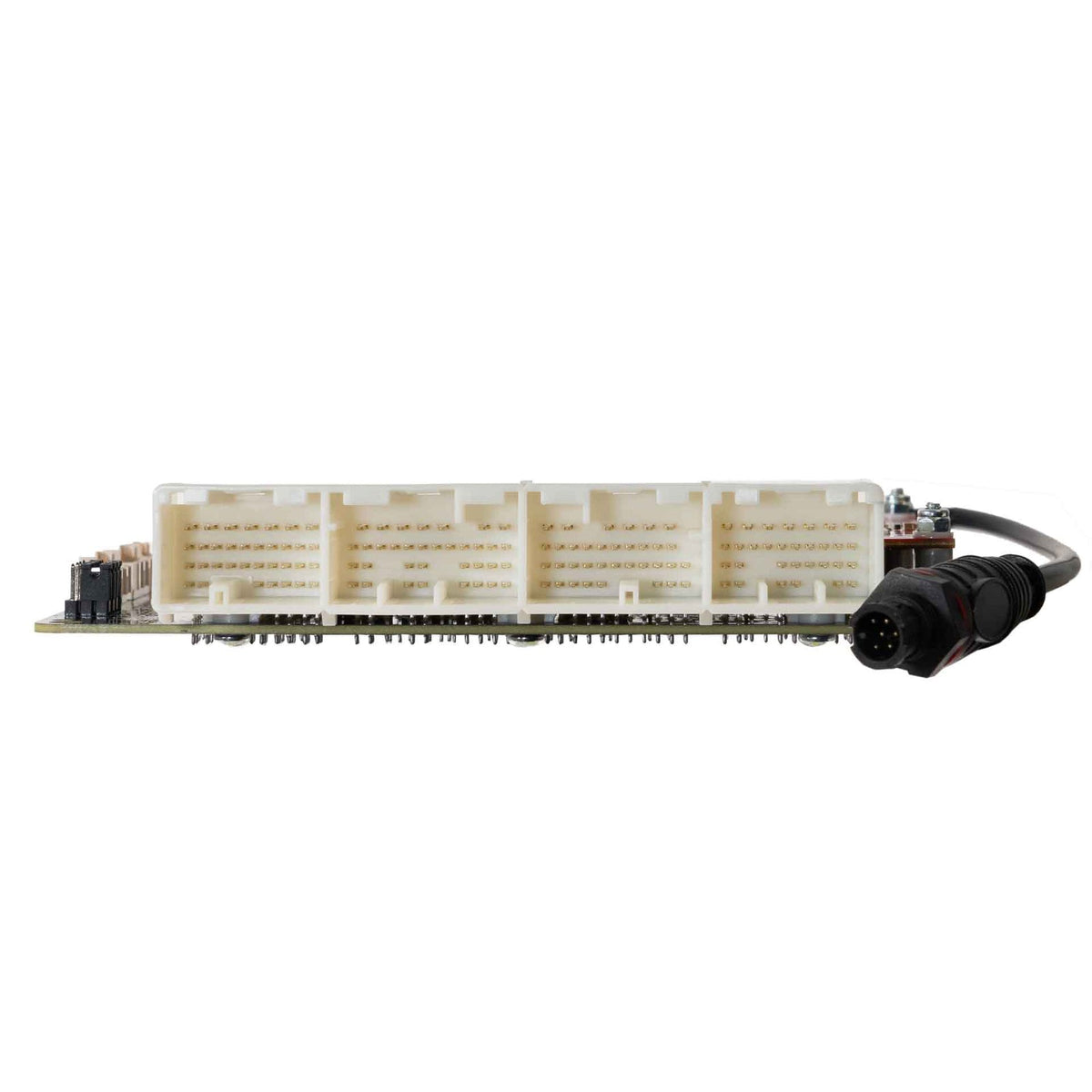

• Check that your connector matches the header shown in the photos before ordering. USDM 2011-2014 and 2015-2021 STI cars use the USDM WRX11X (243-4000).
• An air temperature sensor is strongly recommended.
• The security/immobiliser lamp may stay on in some models.
• The older CANPCB cable is not compatible; connect CAN devices with the CANJST4 (101-0198).
• Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

A CANJST4 CAN cable (101-0198) for CAN devices and an air temperature sensor such as the IAT1-8 (101-0045).

Downloads

• WRX11X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
